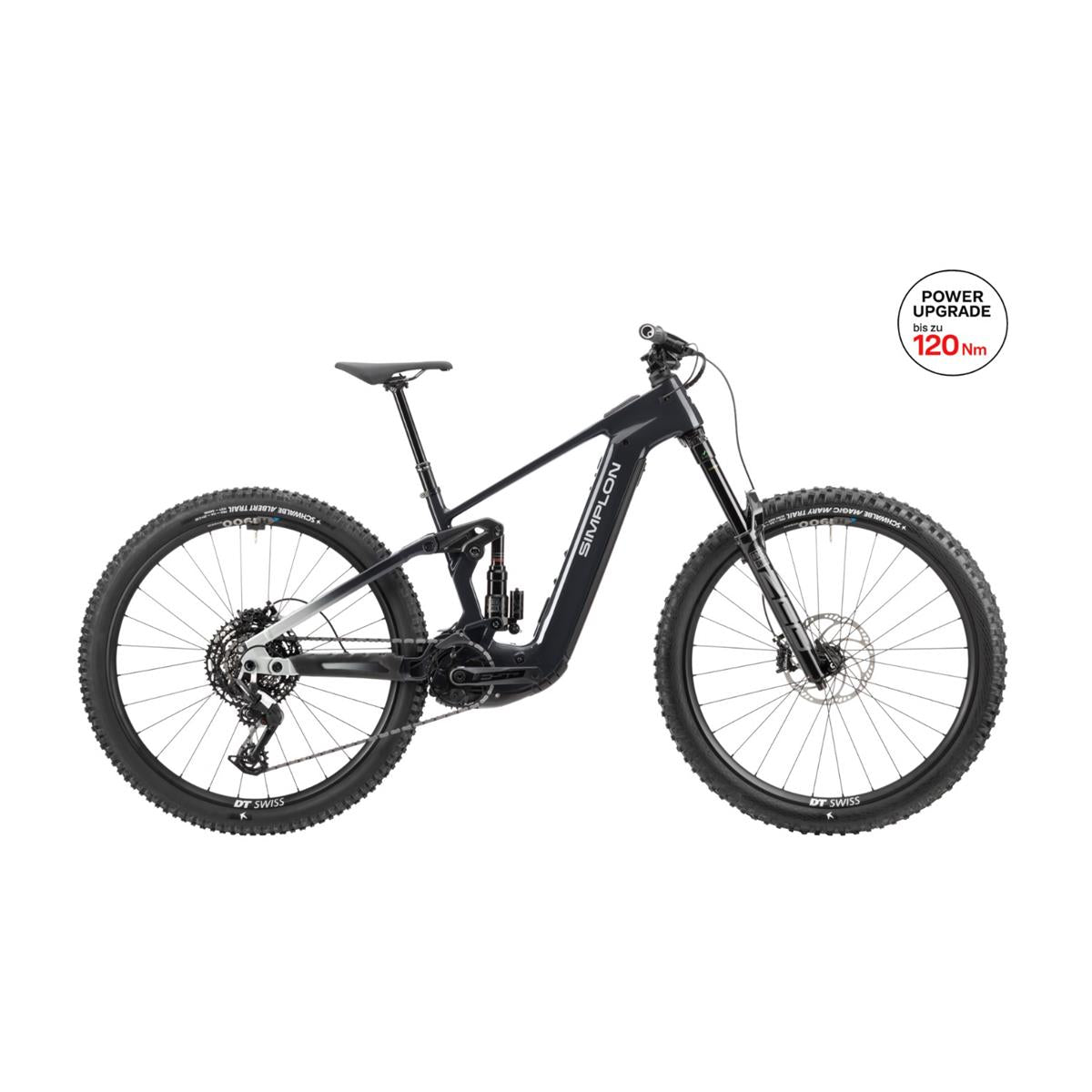

Simplon Rapcon AL 2026 Dark Grey/ Silver
Description
| Technical Details: MAX. SYSTEM WEIGHT (BIKE + RIDER + LUGGAGE) |
150 kg |
|---|---|
| FORK TRAVEL / MOUNTING LENGTH / OFFSET | 160/576/44 mm |
| SHOCK SIZE (INSTALLATION LENGTH X STROKE) | 205 x 62.5 mm |
| SHOCK HARDWARE BOTTOM | Trunnion |
| SHOCK HARDWARE TOP | 10 x 30 mm |
| AXLE STANDARD FRAME | 148 x 12 mm |
| Through axle | 200 x M12 x 1.0 mm |
| FORK MOUNTING DIMENSION | 110 x 15 mm |
| MAX. TIRE SIZE | ETRTO: 65-622 / inches: 29 x 2.60 |
| MAX. BRAKE ROTOR SIZE | 220 mm |
| BRAKE MOUNT | PM7 |
| SEAT TUBE DIAMETER | 31.6 mm |
| HEADSET STANDARD | ZS56/ZS66 |
| Headset | ACROS AZA-639 |
| MAX. CHAINRING SIZE | 36T |
| DERAILLEUR HANGER | UDH |
| NUMBER OF POSSIBLE WATER BOTTLE HOLDERS | 1 |
| MOTOR | Bosch Performance Line CX / PX |
| MAX. SUPPORT LEVEL | 340 (600) % | 400 % |
| MAX. TORQUE | 85 (120) Nm |
| MAX. POWER | 600 (750) watt |
| BATTERY CAPACITY | 600 Wh | 800 Wh |
| RANGE EXTENDER | 250 Wh |
| BATTERY CHARGING OPTION ON BIKE | Yes |
| BATTERY REMOVABLE | Yes |
| CHILD TRAILER READY | Yes |
| BIKE STAND COMPATIBILITY | KSA18 |
| The above image is an example. We reserve the right to replace individual parts with equivalent or higher-quality components, provided that the type, suitability and purpose of the bicycle are not impaired, so that the bicycle may be delivered differently. |
Robust. Elegant. Enduring.
The RAPCON AL:e is aimed at riders who deploy their e-MTB where technique, line selection and real reserves matter. Long climbs, demanding descents, blocked passages. And often more elevation gain at the end than originally planned.
The aluminum frame combines robustness with the elegant lines of the carbon counterpart and provides confidence exactly where it gets fast, steep or unscrambled. The RAPCON AL:e is not a bike for gentle use. It's built to go to the limit.
To ensure energy doesn't run out before the summit, the e-enduro relies on a flexible battery concept. 600 or 800 Wh Adapt to your riding style, light-footed or enduring. For particularly long days, the range extender can be integrated in any frame size and opens up ranges that take the pressure off alpine tours. This is exactly what the RAPCON AL:e is made for: for rides that end when you want them to, not when the battery does.
